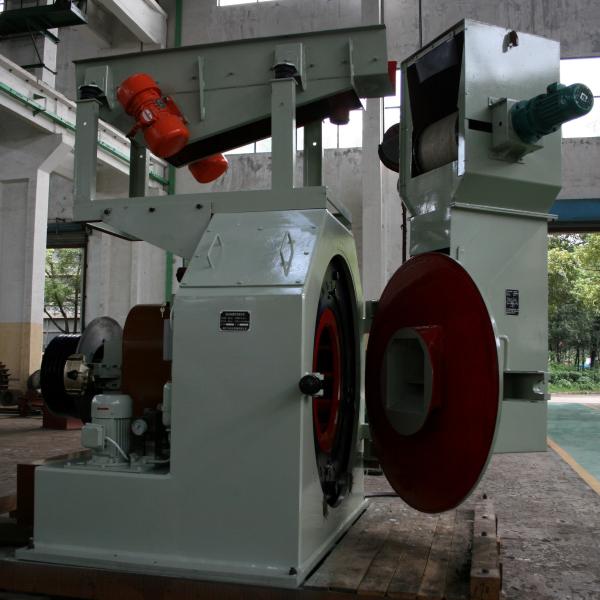

600 mm 0.7~14 Tons Per Hour Flakes Making Knife-Ring Flaker for
Paticle Board Production Line
0.7~14 Tons Per Hour Flakes Making Knife-Ring Flaker for Paticle
Board Production Line
Description
The professional wood chips preparation with the new flaker,
ensures the flake material for the production of high quality
particleboards.
Time and time again, sets new standards in flaking technology due
to the constant further development of the machines and materials.
The knife-ring flaker machine is one of the main machines in the
preparation section of particle board production.
After the chipper cuts wood chips, bamboo chips, broken veneer,
etc. into certain specifications of flakes, the knife-ring flaker
makes them into flakes with certain thickness that meet the process
requirements, which are used as raw materials for particle board.
The flaker has formed a series of products with various
specifications of knife ring diameters from 800 to 1600, which can
meet the needs of particleboard production lines with an annual
output of 30,000-450,000 m³.
Structure of knife-ring flaker
1 Multi-stage structure for heavy object separator which will
seperate wood chips with lenth of 60~120mm.
2 The adjustment device for wind to make the suspension wind speed the same.
3 Distribute wood chips uniform across the width of the knife ring.
4 Effectively control the protruding amount of the flying knife and
the gap between the knife door to ensure uniform thickness of
flakes.
5 New type of impeller to lower the enger consumption.
Main technical data
| | BX466 | BX468 | BX4612 | BX4612/5 | BX4614/4 | BX4614/5 | BX4616/5 |
| Diameter of knife ring / mm | 600 | 800 | 1200 | 1200 | 1400 | 1400 | 1600 |
| Amount of knife / pcs | 21 | 28 | 42 | 50 | 60 | 66 | 74/72/70 |
| Length of knife / mm | 225 | 300 | 375 | 463 | 463 | 449 | 449 |
| Amount of vane / pcs | | | 18 | 18 | 21 | 21/15 | 25/19 |
| Capcity(Solid volume) / t/h | 0.7-0.9 | 1.5-3 | 2.5-4 | 4-6 | 5-8 | 6-9 | 10-14 |
| Power of main motor / kW | 75 | 132 | 200 | 250 | 250 | 250 | 315 |
| Thickness of flakes / mm | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.8 | 0.4-0.9 | 0.4-0.9 | 0.4-0.9 |
