Wind Forming Station for Particle Board Production Line

Description

The PB mechanical forming station is used for form a uniform “mat” of wood particles impregnated with resin at a prior stage in the work process, which is then conveyed to a press suitable for the application.

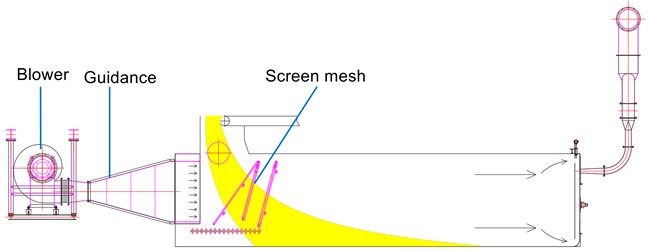

The material, which is loaded into the forming bin through the load chute, falls by gravity into a wind chamber and passes through a set of air nozzles whose task is to carry out a gravimetric and granulometric screening of the wood particles, which are not carried quite so far, settle in the core of the formed mat.

Main characteristics of wind forming station

• Higher strength for inner bond.
• Uniform structure of mat
• Fine on the surface layer particles
• Lower energy cost
• Easily to adjust the density

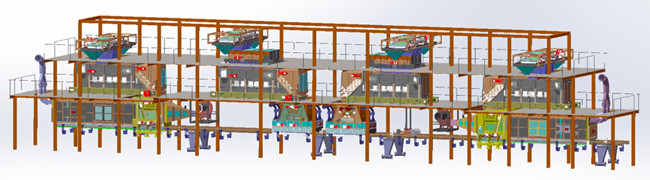

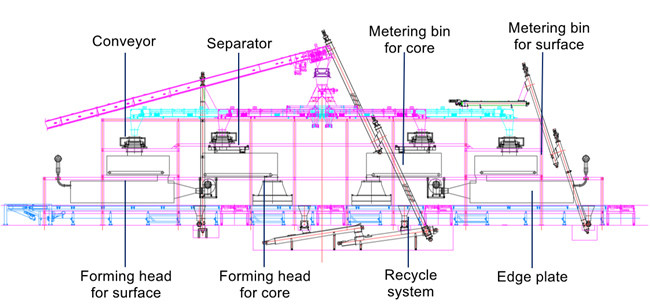

Structure of wind forming station

Disc separator

Metering bin

Forming head

Performance

Suzhou Forestry Technologies Co., Ltd. specializes in plywood, MDF/HDF, particle board, OSB production lines, key machines, spare parts and chemical.
