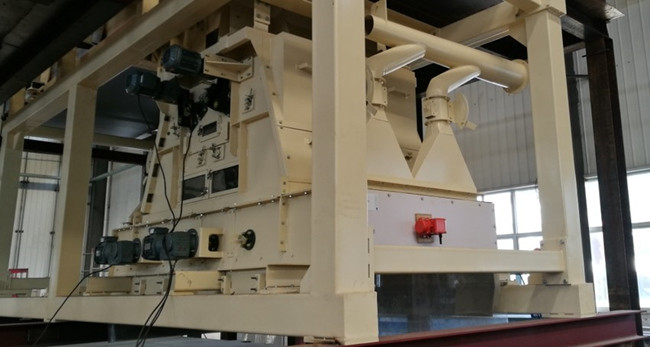

Mechanical Forming Station for Particle Board Production Line

Description

The PB mechanical forming station is used for form a uniform “mat” of wood particles impregnated with resin at a prior stage in the work process, which is then conveyed to a press suitable for the application.

The material, which is loaded into the forming bin through the load chute, falls by gravity into the mechanical forming head where it is evenly and accurately distributed longitudinally and horizontally onto the forming belt below by the flaps and rotating combs mounted inside.

Main characteristics of mechanical forming station

• Higher strength for inner bond.
• Uniform structure of mat
• Fine on the surface layer particles
• Lower energy cost
• Easily to adjust the density

Structure of mechanical forming station

Distribution device

Plate screen

Metering bin

Forming head for surface

Diamond roller

Forming head for core layer

Cage roller
