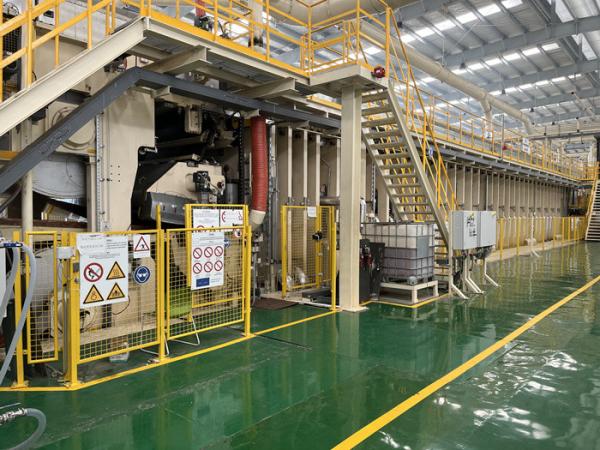

Fully Automatic 300~1500 Cbm Per Day Particle Board Continuous
Press Production Line
Description
The 300~1500m³/day particle board production line uses raw material
through chips preparation, flakes preparation, dring and sitfting,
glue dosing system, forming and hot pressing, cooling &trimming
and sanding section to make particle board / chipboard. The final
size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The
particle board has homogeneous structure, smooth surface, good
machining specification and manufacture performance. It is the
ideal substitute of nature wood.
Continuous pre press belongs to particle board making machine, In
order to ensure a high panel quality, a pre-pressing is usually
carried out before the actual pressing. The mat made of flakes,
fibres or strands is pre-pressed before it is transferred to the
press; this is also referred to as deaeration. This is done by belt
pre-presses. These compress the mats, some of which are very
thickly spread, and reduce their thickness. Preheating of the mat
is also possible. This increases the production capacity.
Summary of process flow
- Chips Preparation Section
- Flakes Preparation Section
- Drying and Sifting Section
- Glue Dosing System
- Forming Line
- Continuous Press System
- Master Board Handling System
- Automatic Storage System
- Sanding and Cut-to-size Section
- Surface Grading System
- Automatic Package Section
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 300~1500 |
| Width of production line | feet | 4,6,7,8,9 |
| Final board thickness | mm | 6~40 |
| Final board width | mm | 915~2800 |
| Final board length | mm | 1830~5490 |
| Press speed | mm/s | Max. 2000 |
Key equipment of production line
1 High energy efficiency and waste energy can be recycled to save
energy
2 More safe due to low oxygen drying to prevent fire
3 Flaker shape will be well maintained
4 Stable flaker moisture
5 Large unit capacity
1 Large capacity and good performance
2 Frame screen box makes strong and durable
3 Brilliant elastic vibration support
4 Perfect rotary balance technology
5 Self-clean system with jumping balls
6 Stable running and long lifetime
7 Compact structure and less space required
1 Feeding crosswise— real-time regional control technology
2 Volume equal silo— ensure consistent bulk density
3 Aerodynamics— perfect balance of positive/negative pressure
airflow
4 Airflow regulation system— artful combination of vertical&
horizontal adjustment
5 Airflow surface forming— fine and smooth surface
6 Advanced control technology— high precision lengthwise and
crosswise density
1 Crosswise feeding— real-time regional control technology
2 More delicate diamond rollers— ensure forming precision
3 Positive/negative pressure assistant airflow— ensure better fine
surface
4 Core cage roller forming— uniform core mat structure
5 Advanced control technology— high precision lengthwise and
crosswise density
- Sanding and cut-to-size line
