High-Performance Refiner for MDF/HDF Production Line with 5-30
Tons/h Capacity
5~30 Tons Per Hour Fiber Making Refiner for MDF/HDF Production Line
Description
We offer a wide range of refiner segments to optimize your plant’s
performance, making the most out of the least. Our refiner segment
technologies ensure the lowest possible overall costs and our
approach is always individually tailored for each production line.
The refiner and defibrator segment experts are continuously
cooperating with our customers within for example MDF, Wet
Hardboard, Doorskin, Wood fiber insulation, Molded fiber and Soil
enrichment applications. They are committed to optimizing each
refiner and defibrator process which often results in new refiner
segment technology. Let us be your co-driver for success
BM pressurized refiner adopts the patents and combined
international advanced technology. The technical data and
performance are close to the advanced level of world-famous similar
products. The refiner has advanced structure, high automatic and
easy operation, reliable and precision running, which can produce
high quality fiber with lower moisture.
Pressurized refiner can be used for MDF/HDF production line with
capacity range from 30,000 to 200,000cbm per year.

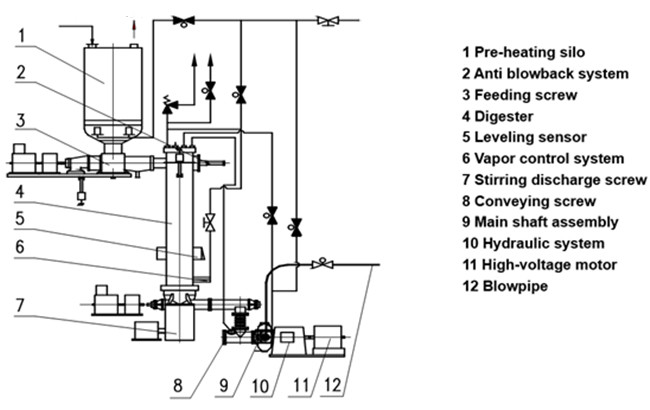

Assembly of refiner system
Main technical data
| SN | Item | Model | 42 | 42 | 44 | 45/48 | 50/54 | 54/58 |
| Cacacity(ton/h) | 5~7 | >7 | 10-11 | 13-18 | 20-26 | 26-30 |
| 1 | Feeding screw | Diameter(mm/inch) | Φ355/14 | Φ355/14 | Φ406/16 | Φ406/16 | Φ475/18 | Φ500/20 |
| 2 | Motor power(kW) | 250(DC) | 250(DC) | 315/355(DC) | 406(DC) | 450(DC) | 550(DC) |
| 3 | Size | Output diameter(mm) | Φ1050 | Φ1050 | Φ1175 | Φ1175 | Φ1370 | Φ1600 |
| 4 | Height(mm) | 7000 | 7000 | 9000 | 9000 | 9000 | 9000 |
| 6 | Motor power of conveying screw(kW) | 15 | 30(DC) | 30(DC) | 45(DC) | 75(DC) | 75(DC) |
| 7 | Size of conveying screw(inch) | / | 16 | 16 | 16 | 18 | 20 |
| 8 | Main motor power(kW) | 1600-2000 | 1600-2000 | 2240 | 3000-3550 | 4000-4500 | 4500-5600 |
| 9 | Diamteter of refiner segment(inch) | 42,44 | 42,44 | 44 | 45,48 | 50,52,54 | 54,58 |
| 10 | Seal of main shaft | Mechnical seal | Mechnical seal | Mechnical seal | Mechnical seal | Mechnical seal | Mechnical seal |

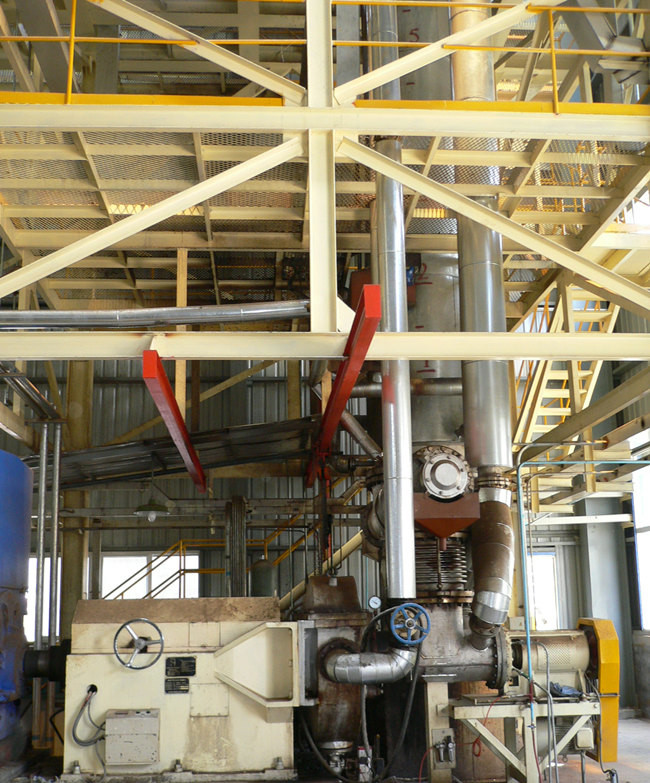

Key parts of refiner
With large compression ratio, wood chips are de-watered during
conveying with the new feeding plug screw, which reduce the drying
energy, meanwhile, the wood chips are crushed, which is good for
grinding. Structure distinguishing feature: overlay and coat one
layer of wear-resistance material, improve the plug screw service
life. Inside the cone pipe, reinforced bar are inlayed, which can
reduce maintenance cost. Speed-adjustable DC motor can provide
large torque and good performance.
Large diameter stainless steel vertical digester vessel has lower
height which has lower requirements for the civil construction. In
desigh of MDF pressurized refiner whose capacity is more than
100,000.0 cbm per year, double screw feed system are used, which
can supply the raw material continuously to improve the fiber
quality.
- Water cooling system
- Lubrication system
- Hydraulic system
- Electrical control system
A fantanstic way to make wood chips to wood fiber.
