Wood Industry Mdf Continuous Press Machine 2500mm/S

Ask Lasest Price
Brand Name :	SufoTech
Price :	USD+10,000,000.00~20,000,000.00
Delivery Time :	10 months
Payment Terms :	L/C,T/T

Add to Cart

Product Details
Company Profile

Wood Industry Mdf Continuous Press Machine 2500mm/S

Max. 2500 Mm/s Speed MDF Continuous Press Line 300-1500 M³/d Capacity 9 Feet Width

Fully Automatic 300~1500 Cbm Per Day MDF/HDF Continuous Press Production Line

Description

What is MDF?

Medium-density fibreboard (MDF) is an engineered wood product made by breaking down hardwood or softwood residuals into woodfibres, often in a defibrator, combining it with wax and a resin binder, and forming panels by applying high temperature and pressure. MDF is generally denser than plywood. It is made up of separated fibres, but can be used as a building material similar in application to plywood. It is stronger and much denser than particle board. The name derives from the distinction in densities of fibreboard. Large-scale production of MDF began in the 1980s, in both North America and Europe.

The 300~1500m³/day MDF/HDF production line uses raw material through chips preparation, fiber manufacturing, glue dosing system, forming and hot pressing, cooling &trimming and sanding section to make MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth surface, good machining specification and manufacture performance. It is the ideal substitute of nature wood.

Summary of process flow

Chips Preparation Section
Fiber Preparation Section
Glue Dosing System
Drying Section
Forming Line

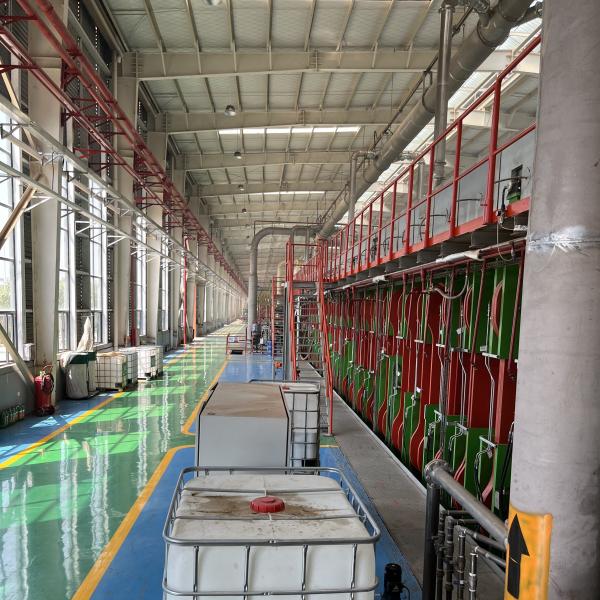

Continuous Press System
Master Board Handling System
Automatic Storage System
Sanding and Cut-to-size Section
Surface Grading System
Automatic Package Section

Main technical data

Item	Unit	Specification
Capacity	m³/d	300~1500
Width of production line	feet	4,6,7,8,9
Final board thickness	mm	1~40
Final board width	mm	915~2800
Final board length	mm	1830~5490
Press speed	mm/s	Max. 2500

Key equipment of production line

Drum chipper
