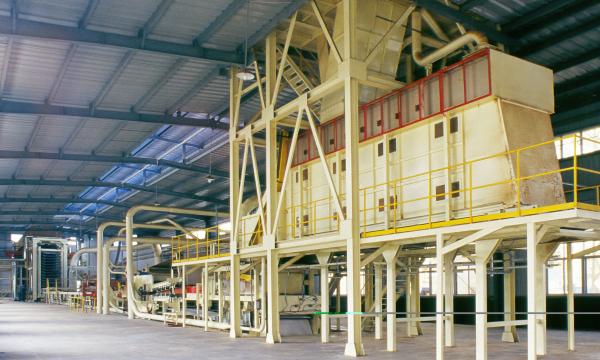

High Performance 8-30mm MDF/HDF Multi-Opening Production Line
(100-700m³/day)
Fully Automatic 100~700 Cbm Per Day MDF/HDF Multi-Opening Press
Production Line
Description
The 180-700m³/day MDF/HDF production line uses raw material through
chips preparation, fiber manufacturing, glue dosing system, forming
and hot pressing, cooling &trimming and sanding section to make
MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6
x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth
surface, good machining specification and manufacture performance.
It is the ideal substitute of nature wood.
Other than printed circuit boards, multi-opening press machines are
also used for film laminating and resin sealing for sensors and
heaters, and production of resin plates and rubber products by
using metal molds.
Conventionally, large non-vacuum press machines have been widely
used for production of plywood and decorative plywood such as
veneer boards, sliced veneer and melamine boards, and sandwich
panels and other building materials and structural materials.
Research and development have been conducted to apply multi-opening
press machines to laminating of thermoplastic CFRP laminates which
are light-weight material and have recently attracted attention,
and future advancements are expected.
Summary of process flow
- Chips Preparation Section
- Fiber Preparation Section
- Glue Dosing System
- Drying Section
- Forming and Hot Press section
- Sanding and Cutting Line
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 100~700 |
| Width of production line | feet | 4,6 |
| Final board thickness | mm | 8~30 |
| Final board width | mm | 915~1830 |
| Final board length | mm | 1830~5490 |
| Press Layers | daylight | Max. 32 |
Key equipment of production line
