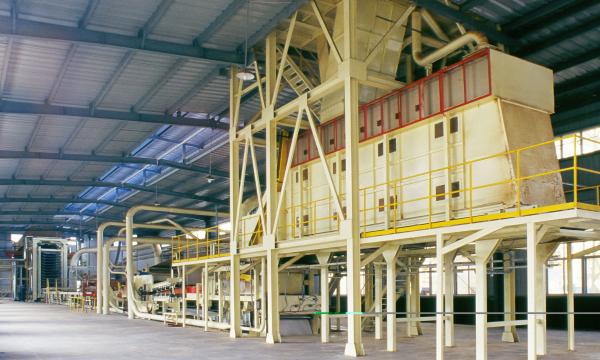

High Performance 8-30mm MDF/HDF Multi-Opening Production Line
(100-700m³/day)
Fully Automatic 100~700 Cbm Per Day MDF/HDF Multi-Opening Press
Production Line
Description
The 180-700m³/day MDF/HDF production line uses raw material through
chips preparation, fiber manufacturing, glue dosing system, forming
and hot pressing, cooling &trimming and sanding section to make
MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6
x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth
surface, good machining specification and manufacture performance.
It is the ideal substitute of nature wood.
1. Small Capacity: 15,000 to 20,000 m3/ year.
30,000~130,000cbm/year is also for option.
2. Size:4x8ft,6ftx9ft, 6x8ft, thickness 9~30mm.
3. Wide Raw materials range: small wood log and branches,veneer
waste, wastes of wood processing mills&furniture factories.
4. Advanced single-pass drum dryer could be used. It adopts flue
gas drying technology, high drying capacity, reduced engery
consumption. Compared with traditional drying methods, it save
25%energy.
5. Low adhesive usage. Electronic dosing is used.
6. Mat forming adopt advanced mechnanical calssifying mat forming.
The unique spiral pattern of diamond rolls ensure ideal forming
performance, increase the panel quality.
7. Multi-opening hot press with synchronized closing device, which
ensures the synchronization and stability of plate moving, thus
accurate panel thickness and reduce sanding amount.
8. Electrical control system: famous brand quality electric
compoments and PLC control systems.
Summary of process flow
- Chips Preparation Section
- Fiber Preparation Section
- Glue Dosing System
- Drying Section
- Forming and Hot Press section
- Sanding and Cutting Line
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 100~700 |
| Width of production line | feet | 4,6 |
| Final board thickness | mm | 8~30 |
| Final board width | mm | 915~1830 |
| Final board length | mm | 1830~5490 |
| Press Layers | daylight | Max. 32 |
Key equipment of production line
