Drum Chipper for MDF, Particle board, Wood, Log, Timber, Veneer

Introduction

Drum chipper is the traditional product of our company. It is widely used by domestic and oversea customers because of its good performance, top quality and other advantages. The drum chipper is the special equipment for producing perfect chips. It is used in paper plant, particle board plant, fiber-board plant and chips bases. By which, logs and small wood are cut into high quality chips with even length and uniform chip thickness, it is also suitable for the chipping of branches and twigs, planks and etc. The chip length is different in accordance with the requirement of paper plant, particle board and fiber-board industries, so in order to meet this need, our company improve different kind of drum chippers recently, and the new type machine has more advantages. All the features show that it is an ideal equipment for chip production which can be uses all over the world.

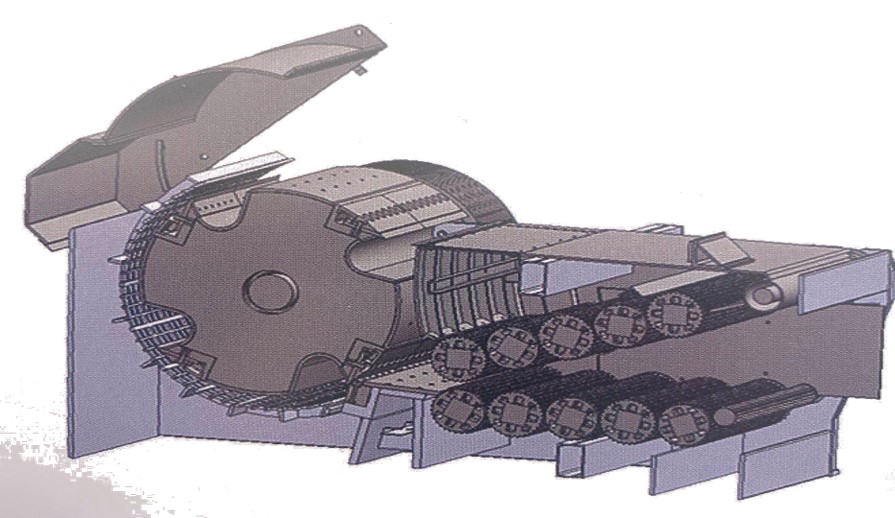

Main compose of drum chipper

• The machine base is a welding structure with high strength steel plate serving as a support of the whole machine.
• The knives (2,3 or 4) are installed to the roller via clamping plate by special knife bolts. The upper feed rollers assembly, with the help of hydraulic system, can float up and down over the material to be cut within certain range, according to the thickness of the material. Wood chips are discharged from the bottom of the machine after passing through screen holes, oversized chips will be re-chipped in the machine.
• Hydraulic system: the oil pump supplies the cylinder with pressure oil, and open the drum cover for easy knife change; and lift the upper feed roller to facilitate the adjustment of the clearance between rotor knives and bed knives, and ease the changing of comb plate.

Main characteristics of drum chipper

• Adopted to a variety of raw materials: Our drum chipper has a wide range of adoptability in cutting wood and non-wood materials
• Strict quality control in entire process, which start from design, manufacture to after sale service: Decades of experience to manufacture chipper, and strict industry standard. Selected raw materials, Strict quality control to the outsource fittings. Electric elements, hydraulic element are high quality brands at home and abroad. Large precise equipment ensures us manufacturing quality chipper.
• Lower operating cost to the users: The design ensures the chipper can be faster and easier to maintenance, reduce operating cost.

Main technical data

Suzhou Forestry Technologies Co., Ltd. specializes in plywood, MDF/HDF, particle board, OSB production lines, key machines, spare parts and chemical.
